LamiFlex600/1600
- group name
- PVC Tarpaulin Sheet
- Min Order
- 1 piece
- brand name
- TAIMEI Tarpaulin Shade Fabric Manufacturer
- Nearest port for product export
- Qingdao Port, Shanghai Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Mon, 23 Dec 2024 23:27:47 GMT
Paramtents
Life Time 1-2 year
Weight 450-700g/m²
Bese Fabric Polyester
Thickness 0.38-0.58mm
Roll Width (Max) 3.2m
Roll Length (Max) 20 - 800m
Surface Finishing PVC
Tensile Strength-Warp 1500-2400N/5cm
Tensile Strength-Weft 1400-2300N/5cm
Temp Resistance -30 to +70℃
Fire Retardent B1,B2 level
Treatment UV treated; Acrylic Lacquered
Printing Compatibility Printing Ready
Packging & Delivery
-
Min Order1 piece
Briefing
Designed for outdoor advertising, wall coverings, banners and other displays
Detailed
-
-

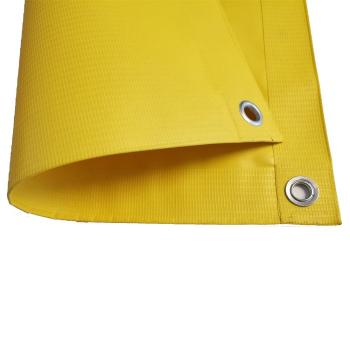

LamiFlex600/1600
Vinyl coated polyester is a material frequently used for flexible fabric structures. It is made up of a polyester scrim, a bonding or adhesive agent, and an exterior PVC coating.
PVC polyester fabric has excellent tensile strength, measured in denier. The coating used for this vinyl often has fire retardant additives, anti-fungicides, and UV stabilizers.
Features:
| MATERIAL DESCRIPTION | ||||||
| ITEM | UNIT | RESULT | TEST STANDARD | |||
| Weight (+/-3%) | g/m² | 450 | 550 | 650 | 700 | DIN EN ISO 2286-2 |
| Bese Fabric | Type | Polyester | Polyester | Polyester | Polyester | DIN 60001 |
| Yarn | Denier | 1000*1000 | 1000*1000 | 1300*1300 | 1300*1300 | DIN EN ISO 2060 |
| Fabric Count | yarn/sq.inch | 9*9 | 12*12 | 12*12 | 12*12 | DIN EN 1049-2 |
| Thickness | mm | 0.38 | 0.46 | 0.54 | 0.58 | - |
| Roll Width (Max) | m | 3.2 | 3.2 | 3.2 | 3.2 | - |
| Roll Length (Max) | m | 20 - 800 | 20 - 800 | 20 - 800 | 20 - 800 | - |
| Surface Finishing | Material | PVC | PVC | PVC | PVC | |
| Tensile Strength-Warp | N/5cm | 1500 | 1700 | 2400 | 2400 | DIN53354 |
| Tensile Strength-Weft | N/5cm | 1400 | 1600 | 2300 | 2300 | DIN53354 |
| Tear Strength-Warp | N/5cm | 160 | 260 | 300 | 300 | DIN53354 |
| Tear Strength--Weft | N/5cm | 150 | 250 | 280 | 280 | DIN53363 |
| Coating Adhesiion | N/5cm | 90 | 100 | 100 | 100 | DIN53363 |
| Temp Resistance | ℃ | -30 to +70 | -30 to +70 | -30 to +70 | -30 to +70 | DIN EN 1876-2 |
| Fire Retardent | B1,B2 level is optional upon request | |||||
| Treatment | UV treated; Acrylic Lacquered upon request. | |||||
| Color | 16 standard color, and can be customized. | |||||
| Printing Compatibility | Printing Ready | |||||
| Temp Resistance | Special treatment to use under -40℃ (optional) | |||||
| Note: The technical specifications contained herein are believed to be reliable, but no representations, guarantees or warranties of any kind are made regarding their accuracy or suitability of the material for particular applications. | ||||||
Features:
- Flame Retardant
- Shrink-Resistant
- Tear-Resistant
- Waterproof
- Customized FR Standard
- REACH Regulations Standard
- Cadium Free
Colors Available:
-
Black
-
White
-
Red
-
Orange
-
Dark Green
-
Dark Red
-
Blue
-
Grey
-
Green
Applications:
-
Grain Covers
Protect grain from adverse weather conditions with grain covers -
Bunding & Spill Control
Optional tread pads and ground covers available. -
Flexible Ventilation Ducts
Effective solution for any industrial, commercial or even residential
Downloads:
- LamiFlex450> Download
- LamiFlex550> Download
- LamiFlex650> Download
- LamiFlex700> Download
