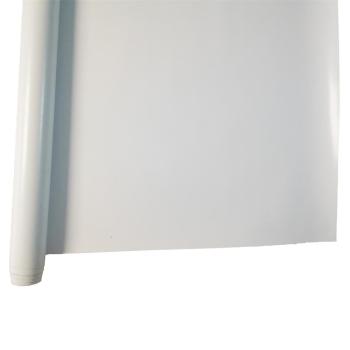

Tufflex-Tent Fabric
- group name
- Tarpaulin & Tent Fabric
- Min Order
- 1 piece
- brand name
- TAIMEI Tarpaulin Shade Fabric Manufacturer
- Nearest port for product export
- Qingdao Port, Shanghai Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Thu, 21 Nov 2024 21:19:20 GMT
Paramtents
Life Time 5-7 year
Weight 650-1050g/m²
Bese Fabric Polyester
Yarn 1000*1000
Thickness 0.5-0.8mm
Roll Width (Max) 3.2m
Roll Length (Max) 20 - 800m
Surface Finishing PVC
Tear Strength-Warp 350N/5cm
Tear Strength--Weft 300N/5cm
Coating Adhesiion 100N/5cm
Temp Resistance -30 to +70℃
Fire Retardent B1,B2 level
Printing Compatibility Printing Ready
Packging & Delivery
-
Min Order1 piece
Briefing
This type of material has chemical stability properties that is capable enough to fight against different liquids
Detailed
-
Tufflex-Tent Fabric
This type of material has chemical stability properties that is capable enough to fight against different liquids with no any significant changes when it comes to its composition and properties.
PVC fabric material has biocompatibility wherein, whenever plastic is used directly with the blood or patients’ tissue, highest-degree of biocompatibility is very essential between the material. PVC fabric that is used in tents is characterized high biocompatibility then this can further increase proper surface modifications.
Features:
| MATERIAL DESCRIPTION | ||||||
|---|---|---|---|---|---|---|
| ITEM | UNIT | RESULT | TEST STANDARD | |||
| Weight (+/-3%) | g/m² | 650 | 750 | 850 | 1050 | DIN EN ISO 2286-2 |
| Bese Fabric | Type | Polyester | Polyester | Polyester | Polyester | DIN 60001 |
| Yarn | Denier | 1000*1000 | 1000*1000 | 1000*1000 | 1000*1000 | DIN EN ISO 2060 |
| Fabric Count | yarn/sq.inch | 20*20 | 23*23 | 23*23 | 30*30 | DIN EN 1049-2 |
| Thickness | mm | 0.5 | 0.58 | 0.65 | 0.8 | - |
| Roll Width (Max) | m | 3.2 | 3.2 | 3.2 | 3.2 | - |
| Roll Length (Max) | m | 20 - 800 | 20 - 800 | 20 - 800 | 20 - 800 | - |
| Surface Finishing | Material | PVC | PVC | PVC | PVC | |
| Tensile Strength-Warp | N/5cm | 2600 | 3300 | 3000 | 4000 | DIN53354 |
| Tensile Strength-Weft | N/5cm | 2400 | 3200 | 2900 | 3500 | DIN53354 |
| Tear Strength-Warp | N/5cm | 350 | 350 | 350 | 520 | DIN53354 |
| Tear Strength--Weft | N/5cm | 300 | 320 | 320 | 450 | DIN53363 |
| Coating Adhesiion | N/5cm | 100 | 100 | 90 | 100 | DIN53363 |
| Temp Resistance | ℃ | -30 to +70 | -30 to +70 | -30 to +70 | -30 to +70 | DIN EN 1876-2 |
| Fire Retardent | B1,B2 level is optional upon request | |||||
| Treatment | UV treated; Acrylic Lacquered upon request. | |||||
| Color | 16 standard color, and can be customized. | |||||
| Printing Compatibility | Printing Ready | |||||
| Temp Resistance | Special treatment to use under -40℃ (optional) | |||||
| Note: The technical specifications contained herein are believed to be reliable, but no representations, guarantees or warranties of any kind are made regarding their accuracy or suitability of the material for particular applications. | ||||||
Features:
- 100% Waterproof
- High Tenacity Strength
- Flexibility
- Crack Resistant
- Customized FR Standard
- REACH Regulations Standard
- Cadium Free
Colors Available:
-
Black
-
White
-
Red
-
Orange
-
Dark Green
-
Dark Red
-
Blue
-
Grey
-
Green
Applications:
-
Awning & Cover
The perfect awning can add beauty and shade to any venue. -
PVC Tents
Requently used in outdoor and long-life products. -
Carpark Cover
Easier and more stylish than ever thanks to the high-quality
Downloads:
- Tufflex-Tent Fabric650> Download
- Tufflex-Tent Fabric750> Download
- Tufflex-Tent Fabric850> Download
- Tufflex-Tent Fabric1050> Download
