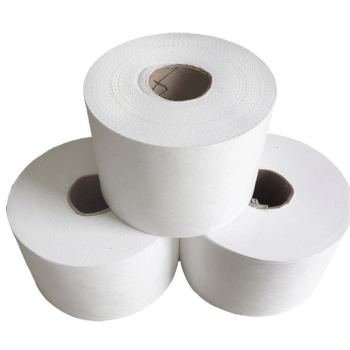

BFE 95% Melt Blown Non-Woven Fabric for Face Mask Filter

group name: Melt-Blown Non Woven Fabric

Min Order: 2000 kilogram

brand name: TAIMEI Tarpaulin Shade Fabric Manufacturer

model: NWF-BFE95

Nearest port for product export: Qingdao Port, Shanghai Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A

update time: Thu, 21 Nov 2024 17:40:30 GMT

contact supplier

Paramtents

Material Polypropylene
Color White
Application Face Mask, Disposal Face Mask
Weight 20 to 60gsm
BFE 95
Roll Width 175mm/195mm/250mm/260mm

Packging & Delivery

Min Order2000 kilogram

Briefing

Melt Blown Face Mask Filter Material is a type of high efficiency particulate filter. It used for Personal Protective Equipment

Detailed

: Introduction

Melt-blown non-woven fabric is a kind of ultra-fine fiber non-woven material made by melt-blown process, raw material is food grade PP, fiber diameter can be 0.4um-2um. The product is treated with special electrostatic, characteristics of high efficiency and low resistance, comfortable and easy to adorn. Can effectively filtration and adsorption of microorganisms, viruses and extremely dust.

Medical grade mask filter can meet with Europe standard EN14638:2003 requirements, the bacterial filtration efficiency(BFE) is over 95%. Or China Standard YY 0469-2011.
Industry grade mask filter can meet with Europe standard EN149:2001 +a1:2009 FFP1/FFP2/FFP3 requirements, and USA standard NIOSH 42 CFE-84 requirement such as N95/N99, and China Standard GB 2626-2006 requirement as KN95 etc. Particle filtration efficiency(PFE) is over 95%

Specification

Product name	BFE 95% melt blown non-woven fabric filter for mask use
Max Roll Width	1600 mm
Weight	20gsm-60gsm
Roll Width	175mm/195mm/250mm/260mm
Color	White or custom
Pattern	Embossed
Production Capacity	12,000 kg/ Day
Grade	Bacterial Filtration Efficiency ≥ 95% (NaCl)
Application Grade	BFE95/BFE99

With the capability to produce fine fibres, ideally suited for the filtration of particles, Melt-blown fabrics provide air filtration applications with excellent barrier and filtration properties.Available in weights ranging from 20 – 80gsm (PP), Melt-blown non-wovens are perfectly suited for applications such as industrial respirators, vacuum cleaner bags, automotive cabin filters, and microbiological filters

Advantages:

Available in widths up to 160 cm
Available in various colors
Melt additives to give enhanced fabric properties, such as UV stability and hydrophobicity
Electrostatic charging of filaments for enhanced sub-micron particle filtration
In-line measurement and control of air permeability
In-line thermal flat calendaring

Applications:

Disposal Face Mask Filter

The complexity of technical fabrics as well as their diverse application
N95,FFP2/FFP3 Mask Filter

High Efficiency of Particle Filtration Fabric
Industrial Respirators Filter

The complexity of technical fabrics as well as their diverse application
Automotive Cabin Filters

Clean Air For Better Life.

Melt Blown Fabric for Face Mask Filter Material: (BFE 95)

BFE95 Melt Blown Face Mask Filter Material is a type of HEPA (high efficiency particulate air) filter. This 100% virgin polypropylene filtration material can be used for PPE (personal protective equipment) masks and respirators. This material has been tested to block 95% of airborne particles with an average particle size range of 3 microns (also known as micrometers). Use this material as the filter layer inside a face mask or face respirator. Please note this material is single use only and non-washable.

Based on The American Society for Testing and Materials (ASTM) standard, this mask filtration material is rated at ASTM Level 1 (see documents). A Level 1 rating is for Low Fluid Resistance. When this filter material is used as the inner layer of a face mask made from a recommended mask material, such as Spun Bonded Polypropylene Non-Woven Material for Masks, the effectiveness of the mask increases.

Testing & Certifications:

This BFE 95% filtration material has gone through rigorous testing and has passed all required certifications for use as the filter material in masks and respirators for blocking 95% of particles. It has passed the BFE (Bacterial Filteration Efficiency) Test. This test determines the material's filtration efficiency by passing aerosolized particles through the material at a constant flow rate and fixed air pressure. This test method complies with GB19083-2010, EN14638:2003

Please Note: This filter material has only been tested BFE. PFE testing is for particles smaller than those that meet BFE standards. Usually, disposal face mask test on BFE, and N95 mask test on PFE

This material has also been tested for breathability and has passed the necessary certification. It was administered and passed the Test, which complies with GB/T32616-2016, EN 14683:2019, Annex C. All test method criteria were met for this material. Testing was performed in compliance with the United States FDA (Food and Drug Administration) good manufacturing practice (GMP) regulations 21 CFR Parts 210, 211 and 820.

Test Standard in Different Countries Below:

The other countries listed in the guidance and their associated product classifications
Product Classifications	Countries	Performance Standard
P2, P3	Australia/New Zealand	AS/NZS 1716:2012
PFF2, PFF3	Brazil	ABNT/NBR 13698:2011
KN95, KP95, KN100, KP100	China	GB2626-2006 GB2626-2019 GB19083-2010
FFP2, FFP3	Europe	EN 149-2001
DS/DL2, DS/DL3	Japan	JMHLW-2000
Korea 1st class	Korea	KMOEL-2017-64
N95, P95, R95 N99, P99, R99 N100, P100, R100	Mexico	NOM-116-2009

Comparation of Different Grade of Melt Blown Fabric

Model	Standard	Weight (gsm)	Max Resistance (Pa)	Max Penetration %	Apply To	Flow Rate (L/min)	Medium	Executive Standard
BFE	BFE95	20	＜20	BFE≥95	Bacterial Filtration Efficiency	32	NaCl	China: GB/T 32610-20016 America:Nelson 42CFR-84 Europe: EN149:2001 Sodium Chloride Inorganic Aerosol d=0.26um Test Equipment: TSI8130 Automatic Filter Tester
BFE	BFE99	25	＜20	BFE≥99	Bacterial Filtration Efficiency	32	NaCl
P	FFP1	25	＜35	PFE≥90	Both Oil and Non-Oil Condition	95	DOP
	FFP2	50	＜90	PFE≥94		95	DOP
	FFP3	80	＜175	PFE≥99		95	DOP
KN	KN90	40	＜100	PFE≥90	Non-Oil Condition	85	NaCl
	KN95	50	＜120	PFE≥95		85	NaCl
	KN100	80	＜175	PFE≥99.9		85	NaCl
N	N95	50	＜100	PFE≥95		85	NaCl
	N99	75	＜175	PFE≥99		85	NaCl
	N100	80	＜175	PFE≥99.97		85	NaCl
PM2.5	PPMB	50	＜100	PFE≥95		85	NaCl
PM2.5	Static Cotton	60	＜90	PFE≥95		85	NaCl
