LamiEco-300/500 Economic FR Tarpaulin
- group name
- PVC Tarpaulin Sheet
- Min Order
- 1 piece
- brand name
- TAIMEI Tarpaulin Shade Fabric Manufacturer
- Nearest port for product export
- Qingdao Port, Shanghai Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Sun, 22 Dec 2024 22:59:37 GMT
Paramtents
Weight 300gsm-500gsm
Life Time 1-2 year
Bese Fabric Polyester
Fabric Count 18*12yarn/sq.inch
Thickness 0.3-0.5mm
Surface Finishing PVC
Tensile Strength-Warp 500N/5cm
Tensile Strength-Weft 500N/5cm
Tear Strength-Warp 150N/5cm
Tear Strength--Weft 150N/5cm
Coating Adhesiion 50N/5cm
Temp Resistance -30 to +70℃
Fire Retardent B1,B2 Level
Printing Compatibility Printing Ready
Packging & Delivery
-
Min Order1 piece
Briefing
PVC Tarpaulin has high tenacity, tear strength and adhesion strength.
Detailed
-
-

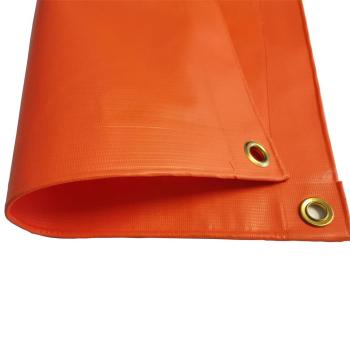

LamiEco-300/500 Economic FR Tarpaulin
PVC tarpaulin is a three-ply fabric consisting of a piece of scrim laminated between two sheets of polyvinyl film (PVC).
PVC tarpaulin is coated polyester waterproof cloth is in high strength polyester canvas cloth, coated with polyvinyl chloride (PVC) paste resin with growth agent.
Features:
| MATERIAL DESCRIPTION | |||||
| ITEM | UNIT | RESULT | TEST STANDARD | ||
| Weight (+/-3%) | g/m² | 300 | 400 | 500 | DIN EN ISO 2286-2 |
| Bese Fabric | Type | Polyester | Polyester | Polyester | DIN 60001 |
| Yarn | Denier | 200*300 | 300*500 | 500*500 | DIN EN ISO 2060 |
| Fabric Count | yarn/sq.inch | 18*12 | 18*12 | 18*12 | DIN EN 1049-2 |
| Thickness | mm | 0.3 | 0.4 | 0.5 | - |
| Roll Width (Max) | m | 3.2/5.1 | 3.2/5.1 | 3.2/5.1 | - |
| Roll Length (Max) | m | 20 - 800 | 20 - 800 | 20 - 800 | - |
| Surface Finishing | Material | PVC | PVC | PVC | |
| Tensile Strength-Warp | N/5cm | 500 | 500 | 500 | DIN53354 |
| Tensile Strength-Weft | N/5cm | 500 | 500 | 500 | DIN53354 |
| Tear Strength-Warp | N/5cm | 150 | 150 | 150 | DIN53354 |
| Tear Strength--Weft | N/5cm | 150 | 150 | 150 | DIN53363 |
| Coating Adhesiion | N/5cm | 50 | 50 | 50 | DIN53363 |
| Temp Resistance | ℃ | -30 to +70 | -30 to +70 | -30 to +70 | DIN EN 1876-2 |
| Fire Retardent | B1,B2 level is optional upon request | ||||
| Treatment | UV treated; Acrylic Lacquered upon request. | ||||
| Color | 16 standard color, and can be customized. | ||||
| Printing Compatibility | Printing Ready | ||||
| Temp Resistance | Special treatment to use under -40℃ (optional) | ||||
| Note: The technical specifications contained herein are believed to be reliable, but no representations, guarantees or warranties of any kind are made regarding their accuracy or suitability of the material for particular applications. | |||||
Features:
- 100% Waterproof
- High Tenacity Strength
- Flexibility
- Crack Resistant
- Customized FR Standard
- REACH Regulations Standard
- Cadium Free
Colors Available:
-
Black
-
White
-
Red
-
Orange
-
Dark Green
-
Dark Red
-
Blue
-
Grey
-
Green
Applications:
-
Grain Covers & Cover
Protect grain from adverse weather conditions with grain covers -
Poultry House Curtain & Cover
One convenient and economy solution for the open the farm house -
Tree Watering Bag & Cover
Offer perfect solution to get the right amount of water to your plants
Downloads:
- LamiEco-300> Download
- LamiEco-440> Download
- LamiEco-500> Download
