VanPro-550/600/650
- group name
- PVC Tarpaulin Sheet
- Min Order
- 1 piece
- brand name
- TAIMEI Tarpaulin Shade Fabric Manufacturer
- Nearest port for product export
- Qingdao Port, Shanghai Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Mon, 23 Dec 2024 22:59:19 GMT
Paramtents
Life Time 3 year
Weight 550-650g/m²
Bese Fabric Polyester
Thickness 0.42-0.54mm
Roll Width (Max) 2.5m
Roll Length (Max) 20 - 800m
Surface Finishing PVC
Tear Strength-Warp 100N/5cm
Tear Strength--Weft 100-120N/5cm
Coating Adhesiion 80N/5cm
Temp Resistance -30 to +70℃
Fire Retardent B1,B2 Level
Treatment UV treated; Acrylic Lacquered
Printing Compatibility Printing Ready
Packging & Delivery
-
Min Order1 piece
Briefing

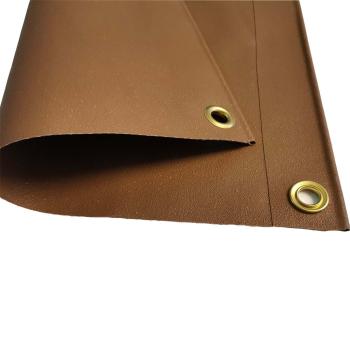

PVC Canvas -- Pitting Finish, that gives it a nice clean look. Also treated to prevent UV damage and mildew.
Detailed
-
VanPro-550/600/650
This material is made to handle extreme outdoor conditions and heavy stress. Ideal for many other uses such as heavy duty bags, outdoor covers, play mats, outdoor shelter uses, the applications are endless. It could be the solution you are looking for outdoors or indoors! -
-
Specifications:
| MATERIAL DESCRIPTION | |||||
| ITEM | UNIT | RESULT | TEST STANDARD | ||
| Weight (+/-3%) | g/m² | 550 | 600 | 700 | DIN EN ISO 2286-2 |
| Bese Fabric | Type | Polyester | Polyester | Polyester | DIN 60001 |
| Yarn | Denier | 600*600 | 600*900 | 900*900 | DIN EN ISO 2060 |
| Fabric Count | yarn/sq.inch | 2*2 | 2*3 | 3*3 | DIN EN 1049-2 |
| Thickness | mm | 0.42 | 0.5 | 0.54 | - |
| Roll Width (Max) | m | 2.5 | 2.5 | 2.5 | - |
| Roll Length (Max) | m | 20 - 800 | 20 - 800 | 20 - 800 | - |
| Surface Finishing | Material | PVC | PVC | PVC | |
| Tensile Strength-Warp | N/5cm | 2200 | 2200 | 2300 | DIN53354 |
| Tensile Strength-Weft | N/5cm | 1400 | 1450 | 1450 | DIN53354 |
| Tear Strength-Warp | N/5cm | 100 | 100 | 120 | DIN53354 |
| Tear Strength--Weft | N/5cm | 100 | 120 | 120 | DIN53363 |
| Coating Adhesiion | N/5cm | 80 | 80 | 80 | DIN53363 |
| Temp Resistance | ℃ | -30 to +70 | -30 to +70 | -30 to +70 | DIN EN 1876-2 |
| Fire Retardent | B1,B2 level is optional upon request | ||||
| Treatment | UV treated; Acrylic Lacquered upon request. | ||||
| Color | 16 standard color, and can be customized. | ||||
| Printing Compatibility | Printing Ready | ||||
| Temp Resistance | Special treatment to use under -40℃ (optional) | ||||
| Note: The technical specifications contained herein are believed to be reliable, but no representations, guarantees or warranties of any kind are made regarding their accuracy or suitability of the material for particular applications. | |||||
Features:
- Excellent UV-protection
- Hign Tenacity Strength
- Anti Mildew
- Crack Resistant
- Customized FR Standard
- REACH Regulations Standard
- Anti cold crac
Colors Available:
-
Black
-
White
-
Red
-
Orange
-
Dark Green
-
Dark Red
-
Blue
-
Grey
-
Green
Applications:
-
Truck Cover
Can effectively protect your vehicle from harmful UV rays. -
Trailer Cover
Significantly reduces premature aging of trailer and helps maintain resale value. -
Boat Covers
Protect your marine investment from the damaging effects of sun
Downloads:
- VanPro550> Download
- VanPro600> Download
- VanPro700> Download
