VanTop-550/600/650
- group name
- PVC Tarpaulin Sheet
- Min Order
- 1 piece
- brand name
- TAIMEI Tarpaulin Shade Fabric Manufacturer
- Nearest port for product export
- Qingdao Port, Shanghai Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Mon, 23 Dec 2024 04:53:31 GMT
Paramtents
Life Time 3 year
Weight 500-650g/m²
Bese Fabric Polyester
Thickness 0.42mm-0.54mm
Surface Finishing PVC
Tensile Strength-Warp 2200--2300N/5cm
Tensile Strength-Weft 1400--1450N/5cm
Coating Adhesiion 80N/5cm
Temp Resistance -30 to +70℃
Fire Retardent B1,B2 Level
Treatment UV treated; Acrylic Lacquered
Printing Compatibility Printing Ready
Color Can be Customized
Packging & Delivery
-
Min Order1 piece
Briefing
Different colorful appearance, special surface treatment anti-slip effect, popular international waterproof cloth.
Detailed
-

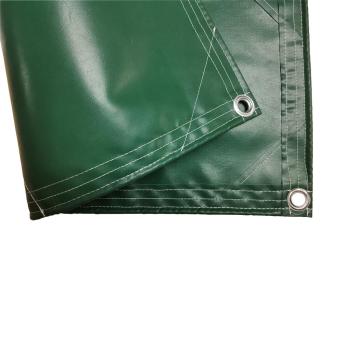

VanTop-550/600/650
The VanTop-550/600/650 known for strength and durability. Ssturdy and made to handle extreme outdoor conditions and heavy stress. It has a soft hand and aesthetic smooth matte finish for a refined, clean look. For maximum durability, our multi-purpose vinyl fabric is treated to help prevent UV damage and mildew. -
-
Specifications:
| MATERIAL DESCRIPTION | |||||
|---|---|---|---|---|---|
| ITEM | UNIT | RESULT | TEST STANDARD | ||
| Weight (+/-3%) | g/m² | 550 | 600 | 700 | DIN EN ISO 2286-2 |
| Bese Fabric | Type | Polyester | Polyester | Polyester | DIN 60001 |
| Yarn | Denier | 600*600 | 600*900 | 900*900 | DIN EN ISO 2060 |
| Fabric Count | yarn/sq.inch | 2*2 | 2*3 | 3*3 | DIN EN 1049-2 |
| Thickness | mm | 0.42 | 0.5 | 0.54 | - |
| Roll Width (Max) | m | 2.5 | 2.5 | 2.5 | - |
| Roll Length (Max) | m | 20 - 800 | 20 - 800 | 20 - 800 | - |
| Surface Finishing | Material | PVC | PVC | PVC | |
| Tensile Strength-Warp | N/5cm | 2200 | 2200 | 2300 | DIN53354 |
| Tensile Strength-Weft | N/5cm | 1400 | 1450 | 1450 | DIN53354 |
| Tear Strength-Warp | N/5cm | 100 | 100 | 120 | DIN53354 |
| Tear Strength--Weft | N/5cm | 100 | 120 | 120 | DIN53363 |
| Coating Adhesiion | N/5cm | 80 | 80 | 80 | DIN53363 |
| Temp Resistance | ℃ | -30 to +70 | -30 to +70 | -30 to +70 | DIN EN 1876-2 |
| Fire Retardent | B1,B2 level is optional upon request | ||||
| Treatment | UV treated; Acrylic Lacquered upon request. | ||||
| Color | 16 standard color, and can be customized. | ||||
| Printing Compatibility | Printing Ready | ||||
| Temp Resistance | Special treatment to use under -40℃ (optional) | ||||
| Note: The technical specifications contained herein are believed to be reliable, but no representations, guarantees or warranties of any kind are made regarding their accuracy or suitability of the material for particular applications. | |||||
Features:
- Mildew Resistant
- Rot Resistant
- Acid Resistant
- Tear Resistant
- Customized FR Standard
- REACH Regulations Standard
- Anti cold crac
Colors Available:
-
Black
-
White
-
Red
-
Orange
-
Dark Green
-
Dark Red
-
Blue
-
Grey
-
Green
Applications:
-
Truck Cover
Can effectively protect your vehicle from harmful UV rays. -
Trailer Cover
Significantly reduces premature aging of trailer and helps maintain resale value. -
Boat Covers
Protect your marine investment from the damaging effects of sun
Downloads:
- VanTop550> Download
- VanTop600> Download
- VanTop700> Download
