B1 Grade Flame Retardant Yellow Color Air Duct Fabric 600gsm 1300D 9x9

group name: Flexible Ventilation Duct Fabric

Min Order: 1 piece

brand name: TAIMEI Tarpaulin Shade Fabric Manufacturer

Nearest port for product export: Qingdao Port, Shanghai Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A

update time: Sun, 22 Dec 2024 22:38:10 GMT

contact supplier

Paramtents

Total Weight 600 g/㎡
Base Thread Density 1300*1300 D
Thickness- finished Product 0.55 mm
Adhesion 100 N/5cm
Temp Resistance -30 ~ +70 ℃

Packging & Delivery

Min Order1 piece

Briefing

PVC Flexible Air Duct Fabric is an innovative and cost-effective fabric alternative to traditional metal ductwork.

Detailed

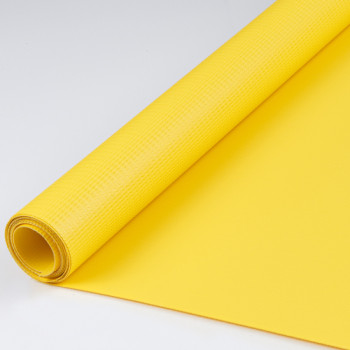

Flexible Air Duct Fabric

PVC Coated Flexible Ventilation Duct Fabric, also called Flexible Aire Duct Fabric is an innovative and cost-effective fabric alternative to traditional metal ductwork providing precise and efficient heating, cooling, or ventilating for virtually any building application. This PVC fabric comprises a woven high tenacity polyester base fabric and a flexible plastic is PVC coating (applied to both sides of the polyester base fabric) is completely waterproof, fire retardant, anti-static, very strong, and durable.

Features

Light Weight compare to the traditional metal ducts

High-temperature resistant -30℃ to 70℃

Excellent resistance to chemicals

Flame retardant

Highly flexible, easily adapted to round, oval or square ducts

Strong material, easily withstands repeated bending and flexing

CONSTRUCTION SAFETY NET-Monofilament Net

SPECIFICATION

Properties	Test Method	Units
Basic Fabric Properties	DIN53351	Thread/inch	9x9
Base Thread Density	DIN53350	Denier	1300D*1300D
Finished Fabric Weight	Din53352	Gram/m²	600
Thickness- finished Product	DIN53352	MM	0.55
Breaking Strength Warp	GB/T1040	N/5cm	2032
Break Strength Weft	GB/T1040	N/5cm	1460
Tearing Strength Warp	Din53356	N	300
Tear Strength Weft	Din53356	N	280
Adhesion	Din53357	N/5cm	100
Temp Resistance	DIN 53368	℃	-30 ~ +70

APPLICATION

WHAT THIS PRODUCTS USED FOR?

Suitable for duct application, fire water mains, gas pipelines, gymnasiums, pools, food processing, fitness centers, convention centers, and schools.
