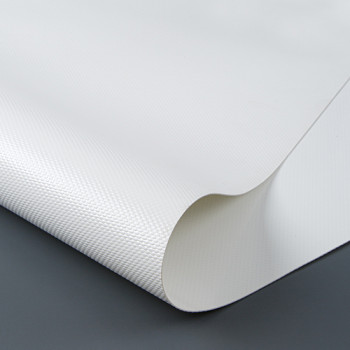

High Strength Tensile PVC Membrane for Architectural Textile facades with 1300D 30x30

group name: Membrane Structure Fabric

Min Order: 1 piece

brand name: TAIMEI Tarpaulin Shade Fabric Manufacturer

Nearest port for product export: Qingdao Port, Shanghai Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A

update time: Sat, 23 Nov 2024 17:33:44 GMT

contact supplier

Paramtents

Total Weight 900 g/㎡
Base Thread Density 1300 D*1500D
Coating PVC coating
Color As per the request
Base Fabric Density 30x30 Panama

Packging & Delivery

Min Order1 piece

Briefing

Tensile membrane structures take shade coverings and translate them into a whole new level of architecture.

Detailed

Membrane Structure Fabric

Tensile membrane structures take shade coverings and translate them into a whole new level of architecture. Their lightweight and free-form design do away with conventional building parameters and constraints to provide an unlimited scope and freedom of design. The uses are many: from walkways to covered lunch areas, to school playground coverings.

Features

100% high tenacity polyester yarns with PVC coating

Laminated technology & Hot-melt Coating technology

Good strength， good flexibility and adhesion strength

Outstanding tearing strength for welding

Cold Crack Resistance，Anti-Mildew，Anti-Static treatment，Waterproof

High Strength to prevent any damage during installing

Special treatments adopted to fit into different industry

Special treatment available：Flame Retardant；Anti-Static；Anti-cold

CONSTRUCTION SAFETY NET-Monofilament Net

SPECIFICATION

Properties	Units	Test method	Average value
Base Fabric Yarn	Dtex		High tenacity polyester 1300 D
Finish	Glossy with two side Lacquering
Coating	PVC coating
Color	As per the request
Base Fabric Density	Thread/cm	FZ/T01003	30x30 Panama
Width	cm		Up to 320
Finished Fabric Weight	Gram/m²	FZ/T01003	900±5%
Thickness - Finished Product	mm	GB/T6672-2001	0.80±0.03
Tensile strength at MD	N/5cm	GB/T1040	3600
Tensile strength at CD	N/5cm	GB/T1040	3400
Tearing Strength at MD	N/5cm	GB/T16578	380
Tearing Strength at CD	N/5cm	GB/T16578	360
Peeling Strength	N/5cm	GB/T3917	120
Temperature Range	℃		-20 ~ +70
Flame Retardancy		NFPA-701,B1 ,B2,M1.M2	Optional

APPLICATION

WHAT THIS PRODUCTS USED FOR?

• Tensile structures

• Large format technical textiles

• Portable storage structures

• Airport hangars

• Shade systems, shadings

• Sports Halls

• Architectural structures
