20cm Thickness PVC Drop Stitch Double Fabric for Gymnastics Mats, Yoga Mats

group name: Double-Wall Dropstitch

Min Order: 1 piece

brand name: TAIMEI Tarpaulin Shade Fabric Manufacturer

Nearest port for product export: Qingdao Port, Shanghai Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A

update time: Mon, 20 May 2024 11:45:09 GMT

contact supplier

Paramtents

Technics Woven
Base Fabric 500D 16x22
Color Customized
Size Customized
Printing Available

Packging & Delivery

Min Order1 piece

Briefing

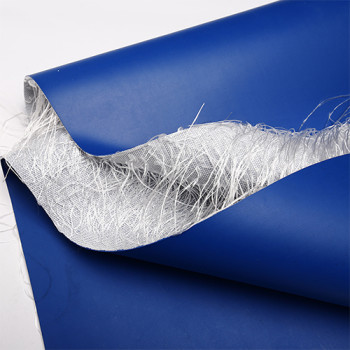

Drop stitch material consists of two parallel sheets of fabric that are connected by thousands of polyester threads.

Detailed

20cm Thickness PVC Drop Stitch Double Fabric for Gymnastics Mats, Yoga Mats

Drop stitch material in a general sense, consists of two parallel sheets of fabric that are connected by thousands of polyester threads. When the edges of the top and bottom fabric sheets are joined by air-tight material and the bladder is inflated, the threads confine the movement of the top and bottomsheets so that it maintains a board shape rather than curving outward like other inflatable objects. 20 cm thickness drop stitch material is widely used for gymnastics mats, yoga mats, floating platforms and docks.

20cm Thickness PVC Drop Stitch Double Fabric 4

20cm Thickness PVC Drop Stitch Double Fabric 5

Features

3D Hollow Structure, Lightness and Dimensionally-stable

Smooth Surface, Equally Stress Distribution and Suitable Hardness

Excellent Air Tightness and Folding Resistance

High Tension Strength, High Tear Strength, High Stiffness

High Compressive Strength, Obdurability and Durable

20cm Thickness PVC Drop Stitch Double Fabric 6

SPECIFICATION

Technology		High Tensile Polyester Base Fabric + Multiple Layer PVC Lamination
Top And Bottom Film Thickness		1.33 mm
Base Fabric		500D 16x22
Pattern		Dot, Wave, In-line
Surface		Matte / Custom Print
Space Length		20 cm (+/-5%)
Weight		2800 gsm (+/-200)
Width		1.05 - 2.06 m
Tensile Strength (2 Layers)		4100 x 2800 N/5cm
Adhesion Strength (2 Layers)		150 N/5cm
Recommended Air Pressure		15 PSI (lbs/inch²)
Maximum Air Pressure		30 PSI (lbs/inch²)
Temperature Range		-50 ~ +70℃

20cm Thickness PVC Drop Stitch Double Fabric 8

20cm Thickness PVC Drop Stitch Double Fabric 9

APPLICATION

20cm Thickness PVC Drop Stitch Double Fabric 10

WHAT THIS PRODUCTS USED FOR?

Inflatable Boat, Bottom Mattress, Inflatable Swimming Pool, Air Deck, Sup Board, Air Mat and Gymnasium Mats
